Odyssey Traction
Sealed maintenance-free TPPL battery (Thin Plate Pure Lead) = AGM with 99.99% pure-lead plates

Odyssey TractionGreater freedom of movement

Particularly short charging times and exceptional performance even of partially charged batteries allow a high flexibility in operating times, duration and cycles, depending on the requirements in operation.

Our recommendation, for those looking for a compact, high performance, sealed traction battery.

Features

  • Enormous starting performance + High cycle stability,

    with the proprietary Thin Plate Pure Lead (TPPL) technology, Odyssey batteries offer both. Their 99.99% pure-lead plates are thinner than lead-alloy plates and make better use of space in the case than spiral-wound AGM batteries. Significantly more plate surface area for the chemical reaction provides significantly more power. Even at very low temperatures they deliver peak starting currents of up to 2,250 A for 5 seconds. TPPL also ensures low self-discharge, less corrosion and faster charging.

  • More flexibility and freedom of movement

    Thanks to particularly short charging times and exceptional performance, even when the battery is partially charged, the operating times, duration and cycles of machines and battery-powered vehicles are largely determined by the requirements of the operation and not by the battery.

  • Stable at high temperatures


    When used in particularly warm areas or in strong sunlight, chargers should be designed to compensate for the heat generated to prevent the battery from overheating (Thermal Runway = TR). Thanks to TPPL, Odyssey Extreme batteries overheat much more slowly than standard AGM batteries.

Characteristics

  • Withstands 400 discharge-charge cycles up to 80% depth of discharge. Even under heavy load.
  • Significantly higher protection against overheating with TPPL compared to standard AGM.
  • High performance even in cold conditions.
  • Extremely resistant to vibration due to pre-compressed fibre mat separators.
  • Short-term loadable with extreme peak currents.
  • Sealed design with thickened electrolyte.
  • Ready to use. Wet charged.
  • Leak-proof, sealed maintenance-free, installation at any angle.
  • TPPL with plates of 99.99% pure-lead. Combines enormous starting performance with special cycle stability.
Recycling efficiency 95 %
Maximum tipping angle 90º

All types

Odyssey Extreme

Battery Volt Capacity CCA Length mm Width mm Height mm Pos. of terminal Terminal
ODS-AGM42Li1242 AH (c20)540 A (CCA)19516517301more

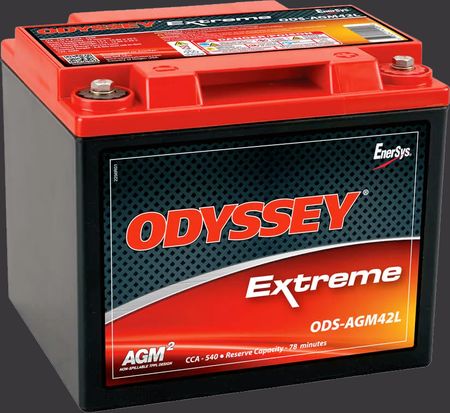

product image Traction Battery Odyssey Extreme ODS-AGM42L

ODS-AGM42L

Japan-Code:{jpn}

ODS-AGM42L

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:42 AH (c20)
Base plate:none
Cold Cranking Ampere:540 A (CCA)
Size:195 x 165 x 173 mm
Schema Batteriekasten

Kasten: ODS-AGM42L
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-AGM34Ri1268 AH (c20)850 A (CCA)27617220001more

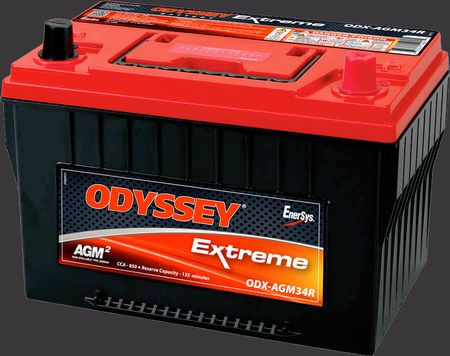

product image Traction Battery Odyssey Extreme ODX-AGM34R

ODX-AGM34R

Japan-Code:{jpn}

ODX-AGM34R

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:68 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:850 A (CCA)
Size:276 x 172 x 200 mm
Schema Batteriekasten

Kasten: ODX-AGM34R
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-AGM34i1268 AH (c20)850 A (CCA)27617220011more

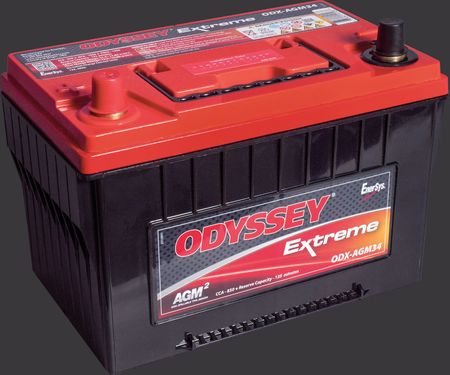

product image Traction Battery Odyssey Extreme ODX-AGM34

ODX-AGM34

Japan-Code:{jpn}

ODX-AGM34

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:68 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:850 A (CCA)
Size:276 x 172 x 200 mm
Schema Batteriekasten

Kasten: ODX-AGM34
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-AGM34-78i1268 AH (c20)850 A (CCA)2761722001Top SAE-Pole und Front 3/8Zoll Buchsemore

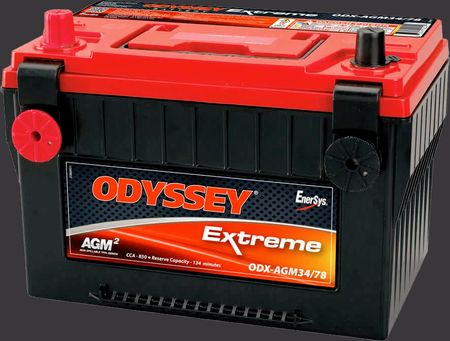

product image Traction Battery Odyssey Extreme ODX-AGM34-78

ODX-AGM34-78

Japan-Code:{jpn}

ODX-AGM34-78

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:Top SAE-Pole und Front 3/8Zoll Buchse
Capacity:68 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:850 A (CCA)
Size:276 x 172 x 200 mm
Schema Batteriekasten

Kasten: ODX-AGM34-78
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-AGM34Mi1268 AH (c20)850 A (CCA)27617220011 / USmore

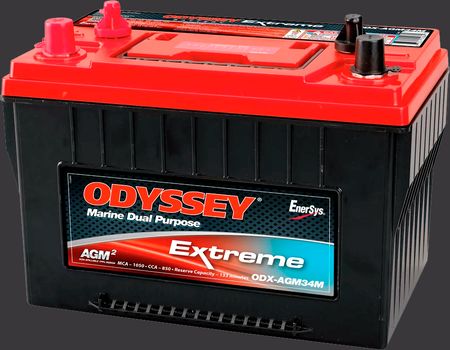

product image Traction Battery Odyssey Extreme ODX-AGM34M

ODX-AGM34M

Japan-Code:{jpn}

ODX-AGM34M

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1 / US
Capacity:68 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:850 A (CCA)
Size:276 x 172 x 200 mm
Schema Batteriekasten

Kasten: ODX-AGM34M
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODS-AGM70i1268 AH (c20)810 A (CCA)3251631760F-M6 oder SAE-Pole mit 3/8Zollmore

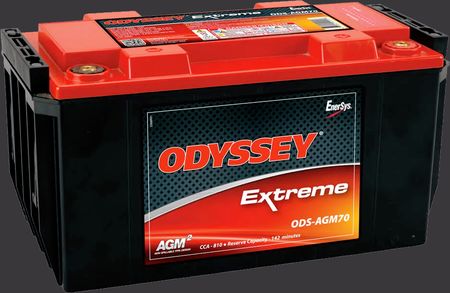

product image Traction Battery Odyssey Extreme ODS-AGM70

ODS-AGM70

Japan-Code:{jpn}

ODS-AGM70

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:F-M6 oder SAE-Pole mit 3/8Zoll
Capacity:68 AH (c20)
Base plate:none
Cold Cranking Ampere:810 A (CCA)
Size:325 x 163 x 176 mm
Schema Batteriekasten

Kasten: ODS-AGM70
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-AGM65i1274 AH (c20)950 A (CCA)30018319011more

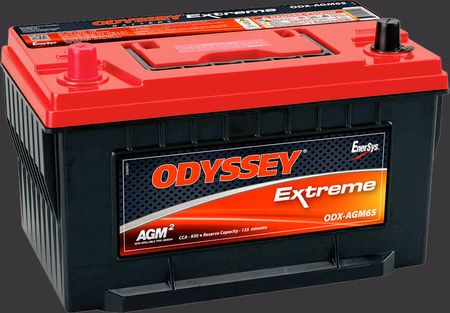

product image Traction Battery Odyssey Extreme ODX-AGM65

ODX-AGM65

Japan-Code:{jpn}

ODX-AGM65

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:74 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:950 A (CCA)
Size:300 x 183 x 190 mm
Schema Batteriekasten

Kasten: ODX-AGM65
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-AGM31i12103 AH (c20)1150 A (CCA)33017324013/8Zoll ( ) und 5/16Zoll (-)more

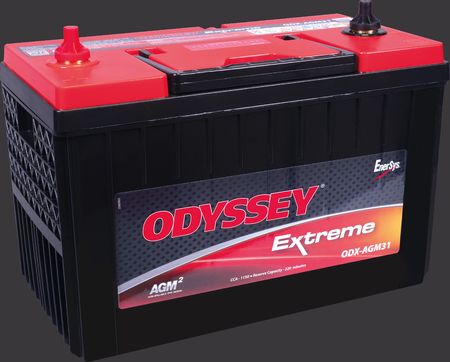

product image Traction Battery Odyssey Extreme ODX-AGM31

ODX-AGM31

Japan-Code:{jpn}

ODX-AGM31

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:3/8Zoll ( ) und 5/16Zoll (-)
Capacity:103 AH (c20)
Base plate:none
Cold Cranking Ampere:1150 A (CCA)
Size:330 x 173 x 240 mm
Schema Batteriekasten

Kasten: ODX-AGM31
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-ACE31i12103 AH (c20)1150 A (CCA)33017324013/8Zoll ( ) und 5/16Zoll (-)more

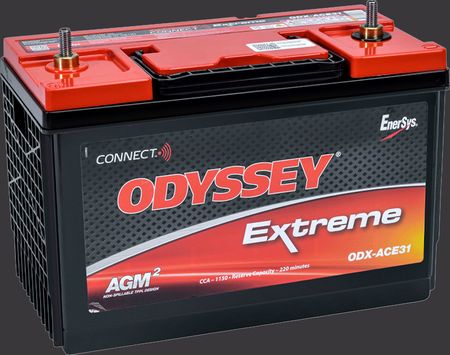

product image Traction Battery Odyssey Extreme ODX-ACE31

ODX-ACE31

Japan-Code:{jpn}

ODX-ACE31

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:3/8Zoll ( ) und 5/16Zoll (-)
Capacity:103 AH (c20)
Base plate:none
Cold Cranking Ampere:1150 A (CCA)
Size:330 x 173 x 240 mm
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-AGM31Mi12103 AH (c20)1150 A (CCA)33017324011 / 3/8Zoll ( ) und 5/16Zoll (-)more
product image Traction Battery Odyssey Extreme ODX-AGM31M

ODX-AGM31M

Japan-Code:{jpn}

ODX-AGM31M

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1 / 3/8Zoll ( ) und 5/16Zoll (-)
Capacity:103 AH (c20)
Base plate:none
Cold Cranking Ampere:1150 A (CCA)
Size:330 x 173 x 240 mm
Schema Batteriekasten

Kasten: ODX-AGM31M
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODX-AGM31MJi12103 AH (c20)1150 A (CCA)33017324013/8Zoll ( ) und 5/16Zoll (-)more

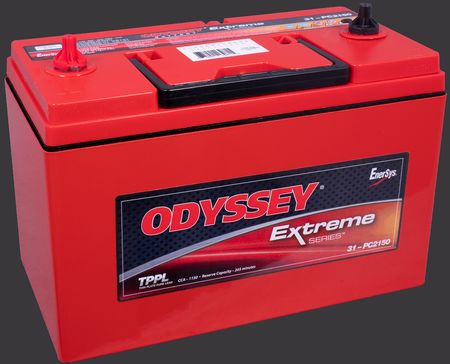

product image Traction Battery Odyssey Extreme ODX-AGM31MJ

ODX-AGM31MJ

Japan-Code:{jpn}

ODX-AGM31MJ

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:3/8Zoll ( ) und 5/16Zoll (-)
Capacity:103 AH (c20)
Base plate:none
Cold Cranking Ampere:1150 A (CCA)
Size:330 x 173 x 240 mm
Schema Batteriekasten

Kasten: ODX-AGM31MJ
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODS-AGM6Mi12126 AH (c20)1225 A (CCA)2862692300SAE-Pole und 3/8Zoll Bolzenmore

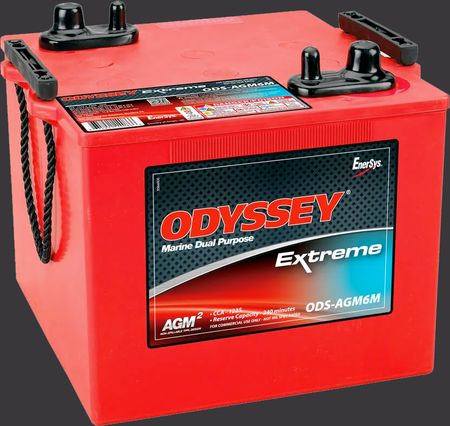

product image Traction Battery Odyssey Extreme ODS-AGM6M

ODS-AGM6M

Japan-Code:{jpn}

ODS-AGM6M

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:SAE-Pole und 3/8Zoll Bolzen
Capacity:126 AH (c20)
Base plate:none
Cold Cranking Ampere:1225 A (CCA)
Size:286 x 269 x 230 mm
Schema Batteriekasten D07

Kasten: D07
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODS-AGM470FTTi12214 AH (c20)1300 A (CCA)5781253160Front M10 Bolzenmore

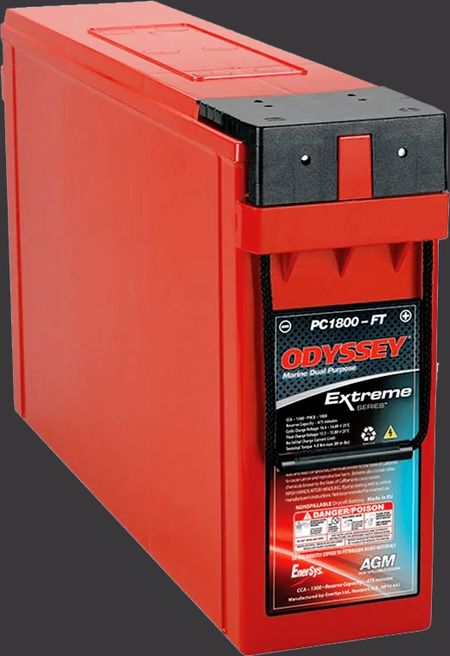

product image Traction Battery Odyssey Extreme ODS-AGM470FTT

ODS-AGM470FTT

Japan-Code:{jpn}

ODS-AGM470FTT

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:Front M10 Bolzen
Capacity:214 AH (c20)
Base plate:none
Cold Cranking Ampere:1300 A (CCA)
Size:578 x 125 x 316 mm
Schema Batteriekasten

Kasten: ODS-AGM470FTT
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

Odyssey Performance

Battery Volt Capacity CCA Length mm Width mm Height mm Pos. of terminal Terminal
ODP-AGM75-86i1249 AH (c20)708 A (CCA)24017820311 / USmore
product image Traction Battery Odyssey Performance ODP-AGM75-86

ODP-AGM75-86

Japan-Code:{jpn}

ODP-AGM75-86

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1 / US
Capacity:49 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:708 A (CCA)
Size:240 x 178 x 203 mm
Schema Batteriekasten

Kasten: ODP-AGM75-86
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGM25i1259 AH (c20)675 A (CCA)24117521811more
product image Traction Battery Odyssey Performance ODP-AGM25

ODP-AGM25

Japan-Code:{jpn}

ODP-AGM25

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:59 AH (c20)
Base plate:none
Cold Cranking Ampere:675 A (CCA)
Size:241 x 175 x 218 mm
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGM34i1261 AH (c20)792 A (CCA)27617120011more
product image Traction Battery Odyssey Performance ODP-AGM34

ODP-AGM34

Japan-Code:{jpn}

ODP-AGM34

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:61 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:792 A (CCA)
Size:276 x 171 x 200 mm
Schema Batteriekasten

Kasten: ODP-AGM34
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGM65i1264 AH (c20)762 A (CCA)30118318811more
product image Traction Battery Odyssey Performance ODP-AGM65

ODP-AGM65

Japan-Code:{jpn}

ODP-AGM65

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:64 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:762 A (CCA)
Size:301 x 183 x 188 mm
Schema Batteriekasten

Kasten: ODP-AGM65
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGM48-L3i1269 AH (c20)723 A (CCA)27817519001more
product image Traction Battery Odyssey Performance ODP-AGM48-L3

ODP-AGM48-L3

Japan-Code:{jpn}

ODP-AGM48-L3

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:69 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:723 A (CCA)
Size:278 x 175 x 190 mm
Schema Batteriekasten L03

Kasten: L03
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGM94R-L4i1280 AH (c20)850 A (CCA)31517519001more
product image Traction Battery Odyssey Performance ODP-AGM94R-L4

ODP-AGM94R-L4

Japan-Code:{jpn}

ODP-AGM94R-L4

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:80 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:850 A (CCA)
Size:315 x 175 x 190 mm
Schema Batteriekasten

Kasten: ODP-AGM94R-L4
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGM49-L5i1294 AH (c20)950 A (CCA)35317519001more
product image Traction Battery Odyssey Performance ODP-AGM49-L5

ODP-AGM49-L5

Japan-Code:{jpn}

ODP-AGM49-L5

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:94 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:950 A (CCA)
Size:353 x 175 x 190 mm
Schema Batteriekasten L05

Kasten: L05
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGM31i12100 AH (c20)925 A (CCA)33017224411more
product image Traction Battery Odyssey Performance ODP-AGM31

ODP-AGM31

Japan-Code:{jpn}

ODP-AGM31

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:100 AH (c20)
Base plate:none
Cold Cranking Ampere:925 A (CCA)
Size:330 x 172 x 244 mm
Schema Batteriekasten

Kasten: ODP-AGM31
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGM31Ai12100 AH (c20)925 A (CCA)33017224411 / 3/8Zoll ( ) und 5/16Zoll (-)more
product image Traction Battery Odyssey Performance ODP-AGM31A

ODP-AGM31A

Japan-Code:{jpn}

ODP-AGM31A

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1 / 3/8Zoll ( ) und 5/16Zoll (-)
Capacity:100 AH (c20)
Base plate:none
Cold Cranking Ampere:925 A (CCA)
Size:330 x 172 x 244 mm
Schema Batteriekasten

Kasten: ODP-AGM31A
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGMDINBi12170 AH (c20)1300 A (CCA)51322322331more
product image Traction Battery Odyssey Performance ODP-AGMDINB

ODP-AGMDINB

Japan-Code:{jpn}

ODP-AGMDINB

Position of Terminal:3
Schema Schaltung 3
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:170 AH (c20)
Base plate:none
Cold Cranking Ampere:1300 A (CCA)
Size:513 x 223 x 223 mm
Schema Batteriekasten D05

Kasten: D05
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
ODP-AGMDINCi12215 AH (c20)1250 A (CCA)51827624231more
product image Traction Battery Odyssey Performance ODP-AGMDINC

ODP-AGMDINC

Japan-Code:{jpn}

ODP-AGMDINC

Position of Terminal:3
Schema Schaltung 3
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:215 AH (c20)
Base plate:none
Cold Cranking Ampere:1250 A (CCA)
Size:518 x 276 x 242 mm
Schema Batteriekasten D06

Kasten: D06
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
625-DINC-1500i12220 AH (c20)1500 A (CCA)51827624231more
product image Traction Battery Odyssey Performance 625-DINC-1500

625-DINC-1500

Japan-Code:{jpn}

625-DINC-1500

Position of Terminal:3
Schema Schaltung 3
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:220 AH (c20)
Base plate:none
Cold Cranking Ampere:1500 A (CCA)
Size:518 x 276 x 242 mm
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

Genesis EP

Battery Volt Capacity CCA Length mm Width mm Height mm Pos. of terminal Terminal
12EP13i1213 AH (c10)175831310F-M6more

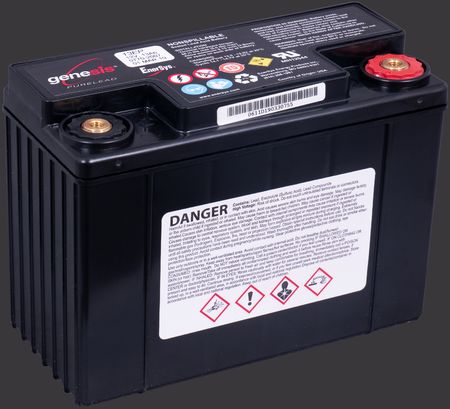

product image Traction Battery Genesis EP 12EP13

12EP13

Japan-Code:{jpn}

12EP13

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:F-M6
Schema Endpol F-M6
Capacity:13 AH (c10)
Base plate:none
Cold Cranking Ampere:
Size:175 x 83 x 131 mm
Schema Batteriekasten

Kasten: 12EP13
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
12EP16i1216 AH (c10)177731680F-M6more

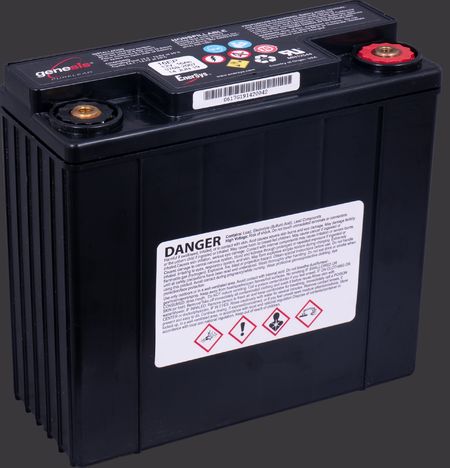

product image Traction Battery Genesis EP 12EP16

12EP16

Japan-Code:{jpn}

12EP16

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:F-M6
Schema Endpol F-M6
Capacity:16 AH (c10)
Base plate:none
Cold Cranking Ampere:
Size:177 x 73 x 168 mm
Schema Batteriekasten

Kasten: 12EP16
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
12EP26i1225 AH (c10)1661741280F-M6more

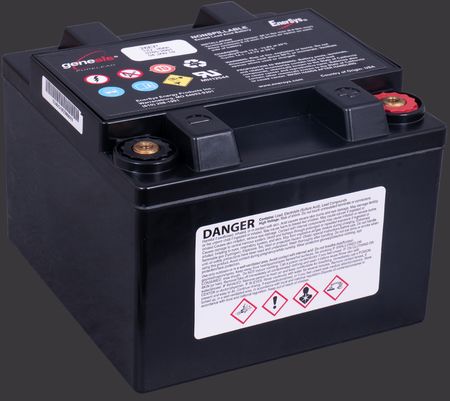

product image Traction Battery Genesis EP 12EP26

12EP26

Japan-Code:{jpn}

12EP26

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:F-M6
Schema Endpol F-M6
Capacity:25 AH (c10)
Base plate:none
Cold Cranking Ampere:
Size:166 x 174 x 128 mm
Schema Batteriekasten

Kasten: 12EP26
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
12EP42i1241 AH (c10)1951651730F-M6more
product image Traction Battery Genesis EP 12EP42

12EP42

Japan-Code:{jpn}

12EP42

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:F-M6
Schema Endpol F-M6
Capacity:41 AH (c10)
Base plate:none
Cold Cranking Ampere:
Size:195 x 165 x 173 mm
Schema Batteriekasten

Kasten: 12EP42
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
12EP70i1263 AH (c10)3251631760F-M6more

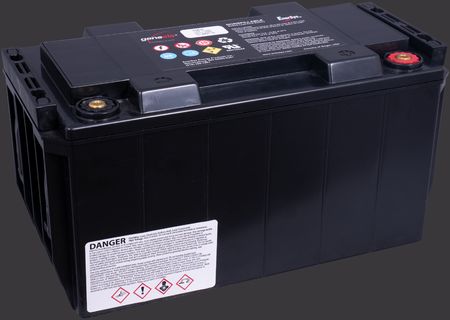

product image Traction Battery Genesis EP 12EP70

12EP70

Japan-Code:{jpn}

12EP70

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:F-M6
Schema Endpol F-M6
Capacity:63 AH (c10)
Base plate:none
Cold Cranking Ampere:
Size:325 x 163 x 176 mm
Schema Batteriekasten

Kasten: 12EP70
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

Accessories
Charger

Odyssey Charger


Odyssey chargers
Matched to 12-volt pure-lead AGM batteries for all applications.


See product

Odyssey Charger


Odyssey chargers
Matched to 12-volt pure-lead AGM batteries for all applications.


See product

Battery knowledge

Our absolutely maintenance-free motorcycle batteries
intAct Bike-Power AGM, intAct Bike-Power SLA, intAct Bike-Power GEL, intAct Bike-Power HVT and intAct Bike-Power GEL HVT-HD are valve regulated lead-acid batteries or VRLA batteries (VRLA=Valve Regulated Lead-Acid). VRLA batteries produce much less gas …
What does absolutely maintenance-free mean?
Absolutely maintenance-free batteries are valve-regulated lead-acid batteries or VRLA batteries (VRLA = Valve Regulated Lead-Acid) that are sealed at the factory. Here, significantly less gas is produced than in wet batteries. The gas produced remains …
Why does this battery have such a good current draw?
Due to the AGM technology, this battery absorbs the current particularly well, i.e. it recharges faster than a conventional wet battery and you can charge it with a higher charging current or a more powerful charger, like the ? This characteristic comes …
Always choose a battery that matches the load
Depending on the type of battery, it is designed for certain loads: Starter batteries must deliver as much current as possible during the starting process. The cold start current, measured in CCA, is informative here and shows how much starting power …
Causal research for better purchasing decisions
Batteries age and fail. Sometimes it happens faster than you planned. If you know the cause of premature aging, you have a chance to make a more appropriate choice now: A battery that fits your technical requirements, intended use, and individual habits …
What the battery does
In a nutshell, the battery generates electricity, which it delivers to the consumers. It is charged and is ready again. So far, so good. Meanwhile, a bit of chemistry happens inside the battery. Current flow In principle, current flows between a positive …
What is short circuit and how do I prevent it?
Short-circuiting occurs when the two terminals or plates of a battery are accidentally connected together. This can happen if the separator between the plates is damaged by vibration, for example, or if excessive battery sludge builds up, closing the …
Safety instructions for handling acid
Battery acid consists partly of sulphuric acid, which is highly corrosive. It attacks your skin, textiles and even metal. Put on protective clothing! So always wear gloves, safety glasses and possibly an acid-proof apron when handling batteries. Choose …
Check battery externally before charging
If the battery box is damaged or deformed, replace the battery. Clean dirty terminals with a wire brush. Remove oils, fluids or other deposits. For batteries with plugs, check fluid level and refill to MAX with distilled water if necessary.
Checking the battery step by step
There are many reasons for weakening or failing batteries. An important step in tracking them down is to measure the voltage with a battery tester. Here's how: 1. preparation Disconnect the battery from the vehicle, if possible remove it. Tips on how …
Pay attention to the state of charge
We recommend: Check the charge level every 2 - 3 months if ... ... the vehicle is often left unused. ... you drive a lot of short distances. ... many consumers are installed. ... it is cold. ... in start-stop systems the engine does not switch off as …
Charging during long idle periods
If the vehicle is stationary for long periods and you make a lot of short journeys, it is advisable to charge the battery regularly with a charger, even if the battery has a low self-discharge rate or high cold-start performance. The exact intervals depend …
Removing the starter battery or motorcycle battery
If you want to remove a start-stop battery: inform the vehicle system before removal. First disconnect the negative cable (usually black), also called ground or earth, from the negative terminal of the battery. Then remove the positive cable (usually red) from the positive terminal of the battery.

What is a traction battery?

Traction batteries supply power to the electric motor in machines and vehicles. They are designed to be charged with a charger when not in use and then discharged when in use. Traction batteries are designed for this repetitive alternation between charging and discharging or cycling. Unlike starter batteries, they tolerate being repeatedly discharged to a depth of discharge of up to 80 % well due to the special composition and construction of the grids and separators. The cycle stability of a traction battery provides information on how often it can reach this depth of discharge under ideal circumstances before it is damaged.

Maintenance and Care

Absolutely maintenance-free batteries are valve-regulated lead-acid batteries or VRLA batteries (VRLA = Valve Regulated Lead-Acid) that are sealed at the factory. Here, significantly less gas is produced than in wet batteries. The gas produced remains in the circuit of the battery due to gas recombination. As a result, these batteries lose significantly less liquid. They do not need to be topped up, and it is not even possible to do so, as they cannot be opened again without damage.

For which application is the Odyssey Traction suitable?

Symbol Battery-powered cleaning machinesBattery-powered cleaning machines
Floor sweepers, floor washer-dryer machines, scrubber-dryer machines
Symbol Golf CaddeyGolf Caddey
Electric golf trolleys and/or golf caddies, Golf-Garts.
Symbol sitting lawn mowerssitting lawn mowers
sitting lawn mowers, lawn tractors
Symbol Electric wheelchairsElectric wheelchairs
Electric wheelchairs and electric mobiles
Symbol forklift trucksforklift trucks
forklift trucks, lift trucks, industrial trucks,
Symbol Lifting platformsLifting platforms
For electrically operated lifting platforms, scissor lifts, telescopic lifts, trailer lifts, mast lifts, vertical life
Symbol E-boats (electric boat)E-boats (electric boat)
electric boats or electric ships.
Symbol hybrid vehicleshybrid vehicles
hybrid vehicles, hybrid cars, hybrid electric vehicles, hybrid electric vehicles
