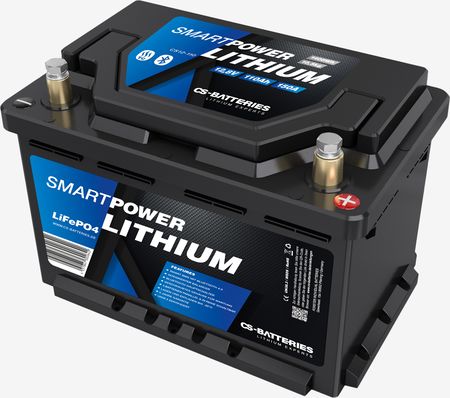

Forster Smart Power CS12-110

Sealed lithium iron sulphate battery (LiFePO4)
Prismatic Smart Cells (PSC)
absolutely maintenance-free

Do you want to buy your battery locally?
Find a dealer near you

Buy CS12-110
Get your battery you need quickly and easily online in our online shop

Do you want to buy your battery locally?
Find a dealer near you

Buy CS12-110
Get your battery you need quickly and easily online in our online shop

Product Description

Versatile, powerful and affordable
The Smart Power series offers a LiFePO4 lithium supply battery with innovative frost protection management at an attractive price. It is ideal for motorhomes, vans, caravans, boats, the fishing world and energy storage systems.
Our recommendation if safe use is required even in cold temperatures of up to -30° C.

Safe lithium technology (LiFePO4).
Highest performance and maximum space utilization thanks to Prismatic Smart Cells (PSC).
Power Battery Management System (BMS) The newly developed Power Battery Management System is based on the latest microcontroller technology. It monitors and protects your battery from damage in every application.
Comprehensive protection functions of the BMS:
State of charge monitoring: Keep an eye on the battery's state of charge at all times.
Multi-charge mode (MCM): Optimal charging with different charging sources.
Frost protection management (FSM): Safe use even in cold temperatures down to -30°C (except for CS12-100).
On/off switch: Switch the battery on and off conveniently via app.
Cell heating control: Automatic heating of the cells at cold temperatures (except for CS12-100).
Overload protection: Protects the battery from overload.
Deep discharge protection: Prevents deep discharge and thus protects the battery.
Overvoltage protection: Protects the battery from overvoltage.
Active cell balancing: Even charging and discharging of all cells for a long service life.
Charge monitoring: Monitoring of the charging process.
Complete temperature monitoring: Continuous monitoring of battery temperature.
Weight and space savings of up to 75% compared to a conventional battery of the same capacity.
Flexible installation position. Can be installed upright, horizontally, upside down and in any other position.
Extremely long life expectancy with full capacity utilization. Up to 3,500 cycles at 80 % depth of discharge (= 80 % DOD).
Capacity can be extended by connecting up to 4 batteries of the same type in parallel.
Monitoring via integrated Bluetooth
Free CS-Batteries app for Android and iOS.
Screwed housing for service according to DIN standard
Ready to install and immediately ready for use.
Absolutely maintenance-free.

Downloads

en
Datasheet
ca. 200 KB

Technical data

Art.-Nr.	CS12-110
Technology	Sealed lithium iron sulphate battery (LiFePO4)
Voltage	12,8V
Capacity	110 Ah (c20) 1408Wh
CCA	-
Position of terminal	0
Terminal	1
Base plate	-
Degassing
Size (LxWxH)	278x175x190mm
Weight	10,5kg

Finde the right battery

Please compare the following points with your old battery to ensure that the new battery fits.

Absolute length
incl. lid overhang or base moulding
Absolute width
incl. cover overhang or base moulding
Absolute height
Height of the poles, or top edge, with recessed poles

Position of Terminal = pole arrangement
Be sure to compare the position of the positive and negative terminals with your old battery.

Battery terminals are available in different versions. Be sure to compare the illustrations with your old battery.

Base plates vary as batteries and their mountings are different. When purchasing, make sure that it fits to avoid damage or short circuits.

When buying batteries: "Birds of a feather flock together!" It's best to choose the same battery technology as before, or one that the manufacturer expressly allows.

Dimensions

Position of Terminal

Terminal

Base plate

Technology

Product Description

Downloads

Technical data
