intAct Traktion-Power PzSFor the heaviest load

These armored plate batteries have been specially developed for the most demanding applications. Whether as a traction battery in multi-shift operation, in work platforms for outdoor use or as a storage battery in smaller solar or wind power systems - these batteries can withstand the most adverse conditions.

Our recommendation for the heaviest applications with the highest demands on the battery.

General properties

For heavy professional cyclic use: 1,000 cycles according to IEC 254-1.
More cycle-resistant than comparable standard lead-acid batteries with grid plate technology.
Armored plate technology: Robust and technically mature for the heaviest loads.
Particularly resistant to shocks in uneven outdoor use. Tubes protect active material like armor.
Long service life. Even in 2 to 3-shift operation. Durable, safe and reliable.
6 and 12 volt versions.
Can be equipped with a water filling system to extend service intervals.
Low maintenance. Closed block battery with liquid electrolyte.

Product overview

Cards
Detailed listing

Table
Compact overview

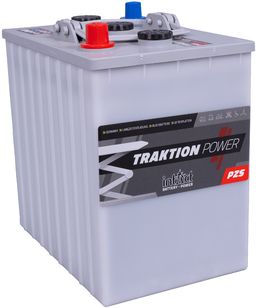

06TP175

Voltage	6V
Capacity	185 AH (c5), 240 AH (c20)
Position of terminal	1
Size (LxWxH)	262x181x281mm

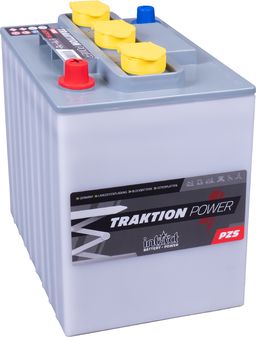

06TP190

Voltage	6V
Capacity	190 AH (c5), 240 AH (c20)
Position of terminal	1
Size (LxWxH)	262x181x281mm

06TP210

Voltage	6V
Capacity	210 AH (c5), 270 AH (c20)
Position of terminal	0
Size (LxWxH)	244x190x275mm

06TP265

Voltage	6V
Capacity	265 AH (c5), 350 AH (c20)
Position of terminal	0
Size (LxWxH)	312x180x359mm

06TP320

Voltage	6V
Capacity	320 AH (c5), 425 AH (c20)
Position of terminal	0
Size (LxWxH)	312x180x359mm

12TP55

Voltage	12V
Capacity	55 AH (c5), 72 AH (c20)
Position of terminal	0
Size (LxWxH)	278x175x190mm

12TP70

Voltage	12V
Capacity	75 AH (c5), 95 AH (c20)
Position of terminal	0
Size (LxWxH)	304x173x220mm

12TP72

Voltage	12V
Capacity	72 AH (c5), 96 AH (c20)
Position of terminal	0
Size (LxWxH)	353x175x190mm

12TP90

Voltage	12V
Capacity	90 AH (c5), 120 AH (c20)
Position of terminal	0
Size (LxWxH)	349x175x239mm

12TP110

Voltage	12V
Capacity	110 AH (c5), 150 AH (c20)
Position of terminal	0
Size (LxWxH)	349x175x290mm

12TP125

Voltage	12V
Capacity	125 AH (c5), 167 AH (c20)
Position of terminal	4
Size (LxWxH)	510x175x225mm

12TP150

Voltage	12V
Capacity	150 AH (c5), 200 AH (c20)
Position of terminal	4
Size (LxWxH)	513x223x223mm

12TP180

Voltage	12V
Capacity	180 AH (c5), 240 AH (c20)
Position of terminal	4
Size (LxWxH)	518x276x242mm

Batterie	Voltage	Capacity	Length	Width	Height	Position of terminal	Endpolart	Datasheet
06TP175	6V	185 AH (c5), 240 AH (c20)	262	181	281	1	1	PDF
06TP190	6V	190 AH (c5), 240 AH (c20)	262	181	281	1	1	PDF
06TP210	6V	210 AH (c5), 270 AH (c20)	244	190	275	0	1	PDF
06TP265	6V	265 AH (c5), 350 AH (c20)	312	180	359	0	1	PDF
06TP320	6V	320 AH (c5), 425 AH (c20)	312	180	359	0	1	PDF
12TP55	12V	55 AH (c5), 72 AH (c20)	278	175	190	0	1	PDF
12TP70	12V	75 AH (c5), 95 AH (c20)	304	173	220	0	1	PDF
12TP72	12V	72 AH (c5), 96 AH (c20)	353	175	190	0	1	PDF
12TP90	12V	90 AH (c5), 120 AH (c20)	349	175	239	0	1	PDF
12TP110	12V	110 AH (c5), 150 AH (c20)	349	175	290	0	1	PDF
12TP125	12V	125 AH (c5), 167 AH (c20)	510	175	225	4	1	PDF
12TP150	12V	150 AH (c5), 200 AH (c20)	513	223	223	4	1	PDF
12TP180	12V	180 AH (c5), 240 AH (c20)	518	276	242	4	1	PDF

Features

Extremely robust
Thanks to the tubular plate technology, this battery can withstand an extremely high number of cycles.
Your advantage: particularly long service life.
Easy to install
Your benefit: Easy battery replacement thanks to standardized DIN battery boxes.
Low maintenance
You should check the fill level of these batteries regularly and top them up with distilled water to extend their service life. This can be simplified by an optional retrofittable filling system.
Your advantage: Simple prevention and maintenance, longer maintenance cycles.

Video intAct Traktion-Power PZS

In this video, we explain the benefits of an intAct Traktion-Power PZS battery.
