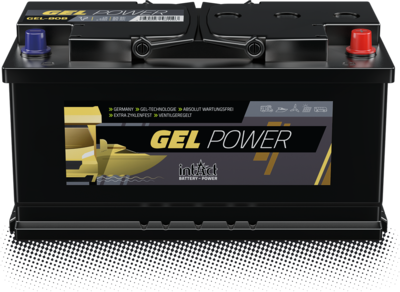

intAct GEL-PowerEasy to maintain in use

Perfectly suited as a traction or supply battery for a wide range of applications in the private and business environment. Leak-proof, absolutely maintenance-free and robust thanks to the electrolyte stored in gel.

Our recommendation for medium cyclical applications where leakage safety and freedom from maintenance play a role.

General properties

For medium to heavy cyclic use. 400 - 700 cycles according to IEC 254-1.
Longer service life than a wet lead-acid battery.
High vibration resistance.
Low self-discharge.
Available in 4-, 6- and 12-volt versions.
VRLA battery with gas recombination and safety valves, where topping up is neither possible nor necessary.
Sealed GEL battery with grid plates.
Leak-proof. Can also be installed in an inclined position as the electrolyte is bound as gel and the battery is tightly sealed.
Filled and charged. Ready for use immediately.
Absolutely maintenance-free.

Product overview

Cards
Detailed listing

Table
Compact overview

GEL-14

Voltage	12V
Capacity	12 AH (c5), 14 AH (c20), 16 AH (c100)
Position of terminal	1
Size (LxWxH)	150x87x145mm

GEL-16

Voltage	12V
Capacity	14 AH (c5), 16 AH (c20), 18 AH (c100)
Position of terminal	0
Size (LxWxH)	181x76x167mm

GEL-19

Voltage	12V
Capacity	17 AH (c5), 19 AH (c20), 21 AH (c100)
Position of terminal	0
Size (LxWxH)	185x80x170mm

GEL-25

Voltage	12V
Capacity	22 AH (c5), 25 AH (c20), 27 AH (c100)
Position of terminal	0
Size (LxWxH)	167x176x126mm

GEL-30

Voltage	12V
Capacity	25 AH (c5), 30 AH (c20), 32 AH (c100)
Position of terminal	1
Size (LxWxH)	197x132x186mm

GEL-40B

Voltage	12V
Capacity	33 AH (c5), 40 AH (c20), 41 AH (c100)
Position of terminal	0
Size (LxWxH)	207x175x175mm

GEL-50B

Voltage	12V
Capacity	40 AH (c5), 50 AH (c20), 55 AH (c100)
Position of terminal	0
Size (LxWxH)	242x175x190mm

GEL-50MK

Voltage	12V
Capacity	43 AH (c5), 50 AH (c20), 55 AH (c100)
Position of terminal	0
Size (LxWxH)	238x140x235mm

GEL-55

Voltage	12V
Capacity	44 AH (c5), 55 AH (c20), 60 AH (c100)
Position of terminal	0
Size (LxWxH)	261x135x230mm

GEL-60

Voltage	12V
Capacity	50 AH (c5), 60 AH (c20), 65 AH (c100)
Position of terminal	0
Size (LxWxH)	278x175x190mm

GEL-60B

Voltage	12V
Capacity	51 AH (c5), 60 AH (c20), 65 AH (c100)
Position of terminal	0
Size (LxWxH)	278x175x190mm

GEL-60MK

Voltage	12V
Capacity	47.4 AH (c5), 60 AH (c20), 70 AH (c100)
Position of terminal	0
Size (LxWxH)	259x166x178mm

GEL-69

Voltage	12V
Capacity	69 AH (c5), 78 AH (c10), 86 AH (c20)
Position of terminal	1
Size (LxWxH)	250x150x400mm

GEL-75

Voltage	12V
Capacity	63 AH (c5), 70 AH (c20), 80 AH (c100)
Position of terminal	1
Size (LxWxH)	260x171x210mm

GEL-80B

Voltage	12V
Capacity	65 AH (c5), 80 AH (c20), 85 AH (c100)
Position of terminal	0
Size (LxWxH)	353x175x190mm

GEL-85

Voltage	12V
Capacity	72 AH (c5), 85 AH (c20), 90 AH (c100)
Position of terminal	1
Size (LxWxH)	330x172x242mm

GEL-115

Voltage	12V
Capacity	94 AH (c5), 115 AH (c20), 130 AH (c100)
Position of terminal	4
Size (LxWxH)	286x269x230mm

GEL-120

Voltage	12V
Capacity	90 AH (c5), 120 AH (c20), 135 AH (c100)
Position of terminal	3
Size (LxWxH)	513x189x223mm

GEL-125

Voltage	12V
Capacity	105 AH (c5), 125 AH (c20), 140 AH (c100)
Position of terminal	0
Size (LxWxH)	349x175x290mm

GEL-140

Voltage	12V
Capacity	120 AH (c5), 140 AH (c20), 155 AH (c100)
Position of terminal	3
Size (LxWxH)	513x223x223mm

GEL-210

Voltage	12V
Capacity	170 AH (c5), 210 AH (c20), 230 AH (c100)
Position of terminal	3
Size (LxWxH)	518x276x242mm

GEL-180-06V1

Voltage	6V
Capacity	160 AH (c5), 180 AH (c20), 200 AH (c100)
Position of terminal	0
Size (LxWxH)	244x190x275mm

GEL-200-06

Voltage	6V
Capacity	180 AH (c5), 200 AH (c20), 230 AH (c100)
Position of terminal	1
Size (LxWxH)	244x190x275mm

GEL-200-06-M10

Voltage	6V
Capacity	180 AH (c5), 200 AH (c20), 230 AH (c100)
Position of terminal	1
Size (LxWxH)	244x190x275mm

GEL-300-06

Voltage	6V
Capacity	240 AH( c5), 300 AH (c20), 330 AH (c100)
Position of terminal	1
Size (LxWxH)	312x180x359mm

A504-3-5S

Voltage	4V
Capacity	3,5 AH(c20)
Position of terminal	1
Size (LxWxH)	90x34x64mm

Batterie	Voltage	Capacity	Length	Width	Height	Position of terminal	Endpolart	Datasheet
GEL-14	12V	12 AH (c5), 14 AH (c20), 16 AH (c100)	150	87	145	1	F-M5	PDF
GEL-16	12V	14 AH (c5), 16 AH (c20), 18 AH (c100)	181	76	167	0	G-M5	PDF
GEL-19	12V	17 AH (c5), 19 AH (c20), 21 AH (c100)	185	80	170	0	G-M5	PDF
GEL-25	12V	22 AH (c5), 25 AH (c20), 27 AH (c100)	167	176	126	0	G-M5	PDF
GEL-30	12V	25 AH (c5), 30 AH (c20), 32 AH (c100)	197	132	186	1	19	PDF
GEL-40B	12V	33 AH (c5), 40 AH (c20), 41 AH (c100)	207	175	175	0	1	PDF
GEL-50B	12V	40 AH (c5), 50 AH (c20), 55 AH (c100)	242	175	190	0	1	PDF
GEL-50MK	12V	43 AH (c5), 50 AH (c20), 55 AH (c100)	238	140	235	0	1	PDF
GEL-55	12V	44 AH (c5), 55 AH (c20), 60 AH (c100)	261	135	230	0	1	PDF
GEL-60	12V	50 AH (c5), 60 AH (c20), 65 AH (c100)	278	175	190	0	1	PDF
GEL-60B	12V	51 AH (c5), 60 AH (c20), 65 AH (c100)	278	175	190	0	1	PDF
GEL-60MK	12V	47.4 AH (c5), 60 AH (c20), 70 AH (c100)	259	166	178	0	F-M6	PDF
GEL-69	12V	69 AH (c5), 78 AH (c10), 86 AH (c20)	250	150	400	1	F-M8	PDF
GEL-75	12V	63 AH (c5), 70 AH (c20), 80 AH (c100)	260	171	210	1	F-M6	PDF
GEL-80B	12V	65 AH (c5), 80 AH (c20), 85 AH (c100)	353	175	190	0	1	PDF
GEL-85	12V	72 AH (c5), 85 AH (c20), 90 AH (c100)	330	172	242	1	1	PDF
GEL-115	12V	94 AH (c5), 115 AH (c20), 130 AH (c100)	286	269	230	4	1	PDF
GEL-120	12V	90 AH (c5), 120 AH (c20), 135 AH (c100)	513	189	223	3	1	PDF
GEL-125	12V	105 AH (c5), 125 AH (c20), 140 AH (c100)	349	175	290	0	1	PDF
GEL-140	12V	120 AH (c5), 140 AH (c20), 155 AH (c100)	513	223	223	3	1	PDF
GEL-210	12V	170 AH (c5), 210 AH (c20), 230 AH (c100)	518	276	242	3	1	PDF
GEL-180-06V1	6V	160 AH (c5), 180 AH (c20), 200 AH (c100)	244	190	275	0	1	PDF
GEL-200-06	6V	180 AH (c5), 200 AH (c20), 230 AH (c100)	244	190	275	1	1	PDF
GEL-200-06-M10	6V	180 AH (c5), 200 AH (c20), 230 AH (c100)	244	190	275	1	F-M10	PDF
GEL-300-06	6V	240 AH( c5), 300 AH (c20), 330 AH (c100)	312	180	359	1	1	PDF
A504-3-5S	4V	3,5 AH(c20)	90	34	64	1	S-4.8	PDF

Features

Easy to install
Your advantage: Easy battery replacement, fits into any battery compartment thanks to standard battery box sizes in DIN dimensions.
Robust and vibration-resistant
Thanks to their design, these gel batteries are significantly more vibration-resistant and robust than conventional wet batteries.
Your advantage: More durable and less sensitive.
Leak-proof and maintenance-free
As the electrolyte is bound in a gel, the gel batteries cannot leak. They are also completely maintenance-free, so no water needs to or can be added.
Your advantage: Perfect for use on uneven terrain, on water and in the interior of motorhomes or at home.

Video intAct Gel-Power

In this video, we explain the benefits of an intAct Gel-Power battery.

Knowledge

The desired application, different technologies, the required performance and your own requirements are just a few factors. We help you to keep an overview and find the right solution.
