Installing a stronger battery: Is that possible?

Größe Kapazität Verbraucher Teaser

Everyone wants more power, more capacity. But it always depends on the balance in the vehicle. Can I afford that in the vehicle? You only get out what you put in. So you really have to weigh up whether it makes sense to go up a size? Can my alternator cope with it? Do I need it at all because I have changed something or not? So I have to look at it, does it make sense?

You can read everything you need to know about this topic in our article.
You can also watch the corresponding video here:

Das Bild zeigt die runde, grüne Grafik des Abschnitt 1.

Balance: a lot out a lot in

Modern vehicles already have sophisticated safety and comfort systems installed ex works. And as a user, you want to supply more and more consumers, whether it's the high-end hi-fi system in the car or the fridge in the camper.

A larger battery with more capacity and power sounds good, but can the alternator cope? It should normally charge the starter battery. Where a lot has to go out, a lot has to come in.
Größe Kapazität Gleichung

Das Bild zeigt die runde, grüne Grafik des Abschnitt 2.

Room for more?

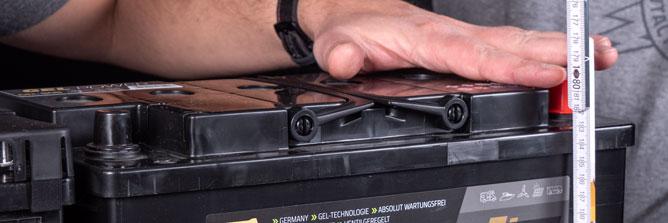

The installation method also sets limits as to whether something larger can be installed at all. In other words, is there room for a larger battery box than the one we have at the moment? If there is still some play, it is worth measuring to check whether the next larger battery will fit.
Größe Kapazität Abmessungen

You can see how to measure correctly when every millimeter counts in our video.
How do you correctly determine the dimensions of a battery?

Das Bild zeigt die runde, grüne Grafik des Abschnitt 3.

Crucial for starter batteries: the cold start performance

Even batteries with the same voltage, almost the same ampere-hour rating and the same dimensions can have significant differences in their cold start value. The power, the current it can deliver under load, is significantly higher with an intAct Premium Power, for example, than with a similarly sized intAct Race Power. This is due to the design of the battery.

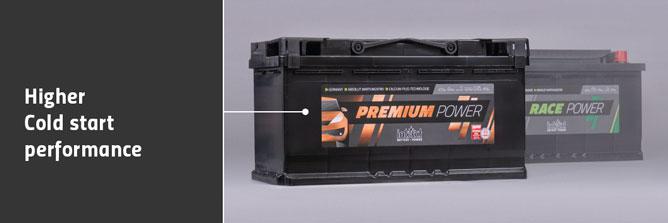

The picture shows an intAct Premium Power with high cold start performance.

The larger power reserve becomes interesting when it comes to starting in the cold.

Das Bild zeigt die runde, grüne Grafik des Abschnitt 4.

Capacity, not only important for supply batteries

Capacity for starter batteries

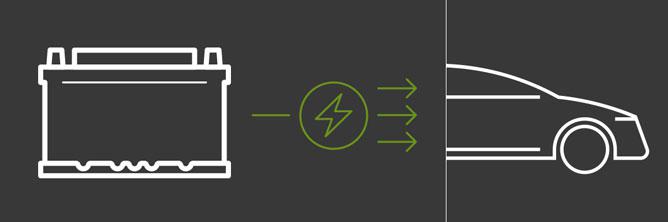

The ampere-hours are generally interesting for starter batteries in newer vehicles that have a lot of comfort electronics in them. Sufficient capacity ensures that they can also supply these consumers.
Größe Kapazität Verbraucher Starter

Capacity for supply batteries

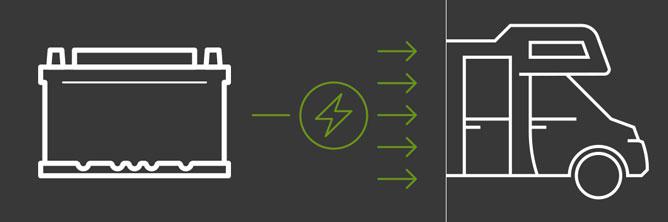

Of course, this is even more interesting if the battery is used as a supply battery. In the leisure sector, in a motorhome, on a boat, perhaps even in a garden shed.
Here it makes sense to calculate the capacity.
Größe Kapazität Verbraucher Wohnmobil

Das Bild zeigt die runde, grüne Grafik des Abschnitt 5.

Calculate capacity

A rough calculation is relatively simple.

  • Add up the watt values of the loads, e.g. coffee machine, PC, refrigerator.
  • Read the required voltage, 12 or 24 volts, on the rating plates. Watts divided by volts gives the number of amps.
  • The hours result from how long you want to operate these consumers at maximum, i.e. the number of amperes multiplied by the desired hours results in the Ah value.
  • A safety reserve is added to this because you cannot discharge the battery to 100%, i.e. 30% is added to the Ah value.

And that roughly gives you the capacity value that your battery should provide.

If a larger battery fits in your vehicle - go for it.
This will automatically give you more cold start power. As long as your alternator can do the same. With traction and supply batteries, the only thing that helps is to calculate so that the fridge and coffee machine don't run out.
